Security Groups Deep Dive

  • Security Groups are acting as a firewall on EC2 instances.

  • They regulate

    • Access to Ports
    • Authorised IP ranges - IPv4 and IPv6

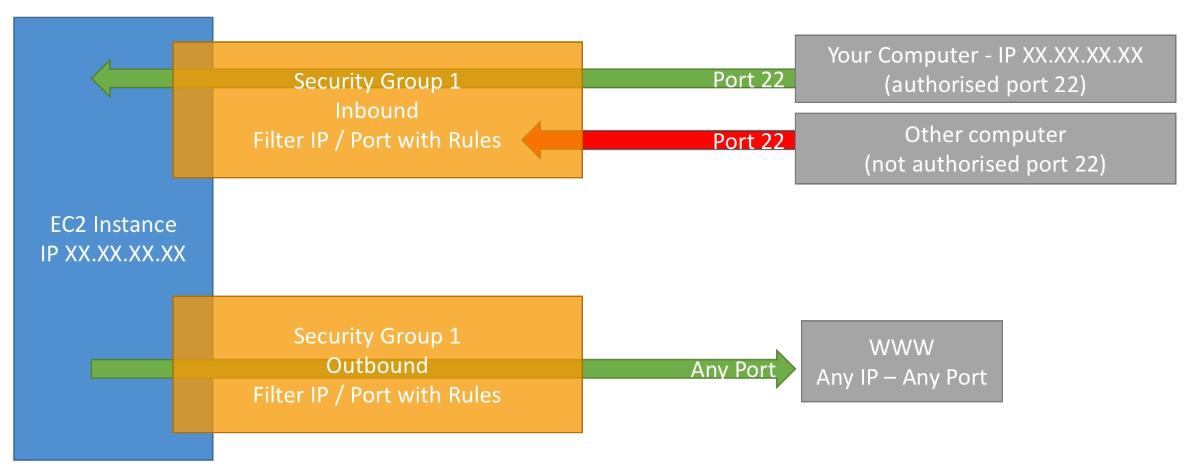

    • Control of inbound network (from other to the instance)
    • Control of outbound network (from the instance to other)

  • Can be attached to multiple instances

  • Locked down to a AWS Region / VPC Summary combination
  • Does live "outside" the AWS EC2 - if traffic is blocked the EC2 instance won't see it.
  • It's a good to maintain one separate security group for ssh access
  • If your application is not accessible (timeout) then it's a security group issue
  • If your application gives a "[[connection refused]]"'error, then it's an application error or it's not launched
  • All [[inbound traffic]] is blocked by default
  • All [[outbound traffic]] is authorised by default

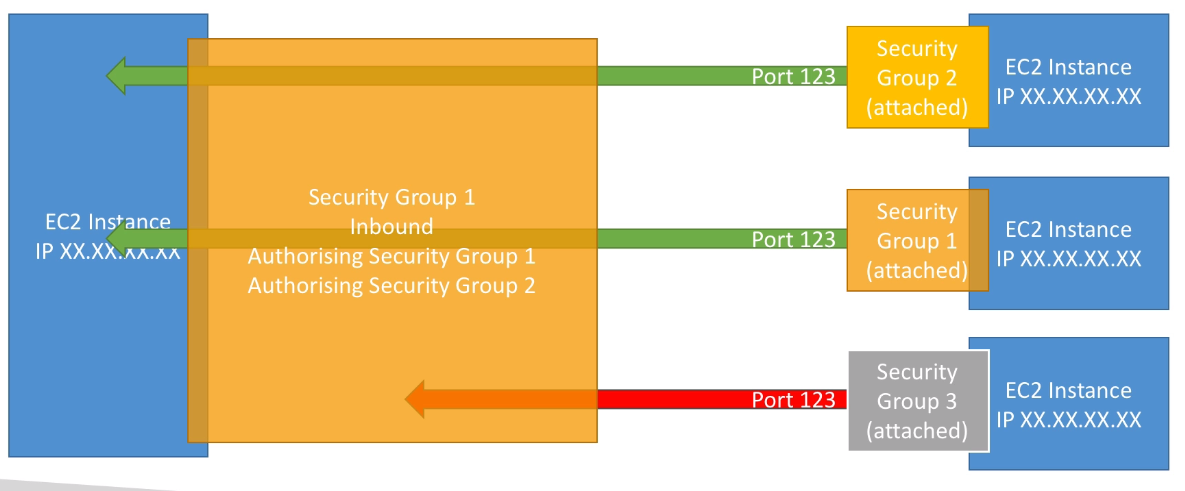

Referencing other security groups

When we have multiple instances on the same security groups, they can communicate.
